How to Reset Cisco 1921/1941 Routers

After you connect your router with the console cable, you will need to use your SSH program like PuTTY or, in my case, Tera Term. You will need a rollover cable to connect your PC and router/switch.

Turn on the router and make a connection with the serial port in Tera Term. In order to enter the ROMmon CLI, go to Control Send break (Alt + B).

Next, enter "confreg 0x2142", then enter "reset".
You can skip setup by entering "no".

Then type "en" and "erase startup-config".
You will need to revert the config-register by typing "config t", next "config-register 0x2102", then "end", and finally type "reload".

Install Active Directory on Windows Server 2022 in VMware Pro

From Windows Server Manager, select Manage Add Roles and Features.

In the Add Roles and Features Wizard, check the “Skip this page by default” checkbox and click Next.

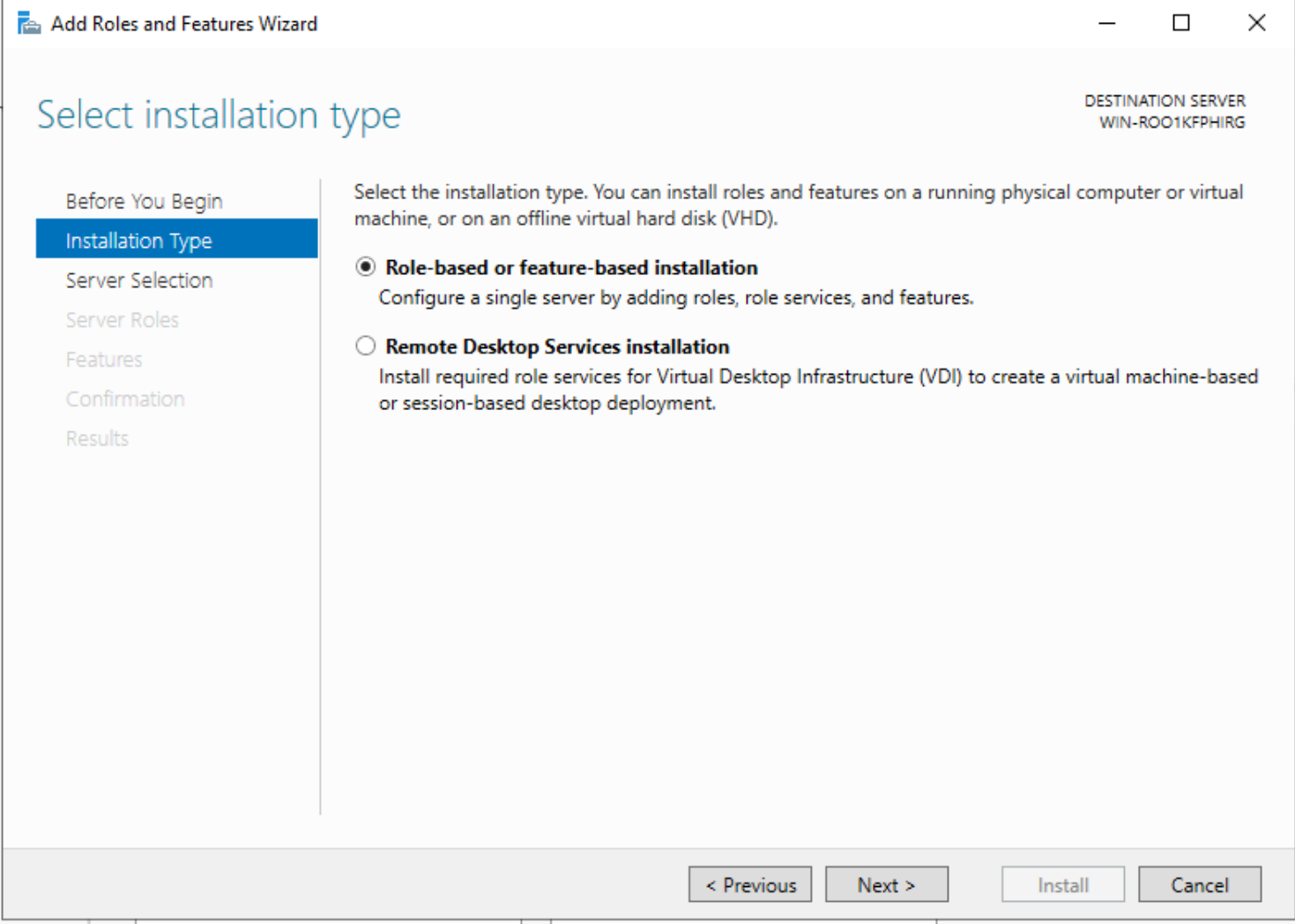

On the Installation Type page, select “Role-based or feature-based installation”, then click Next.

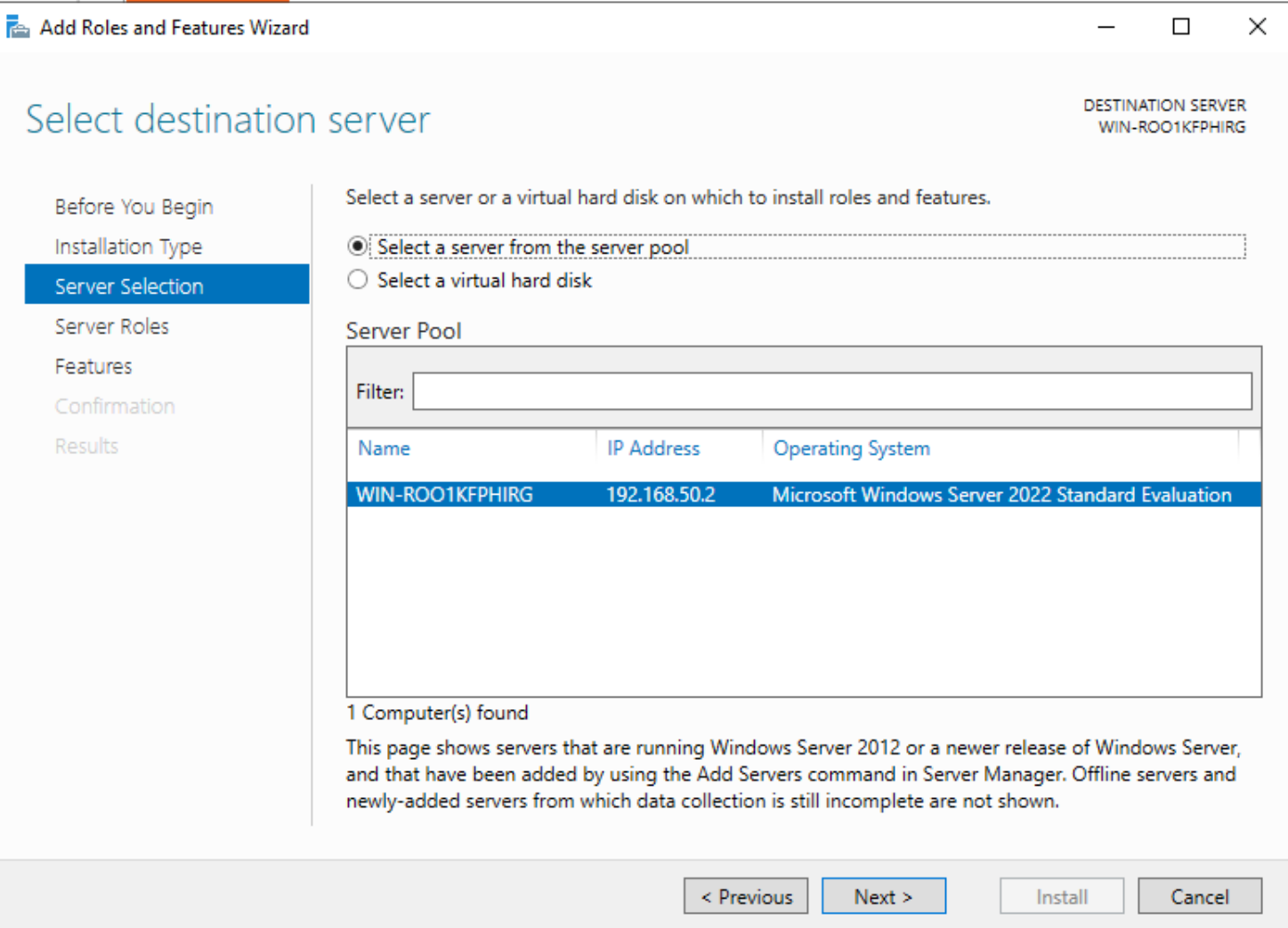

On the Server Selection page, select the server from the server pool and click Next.

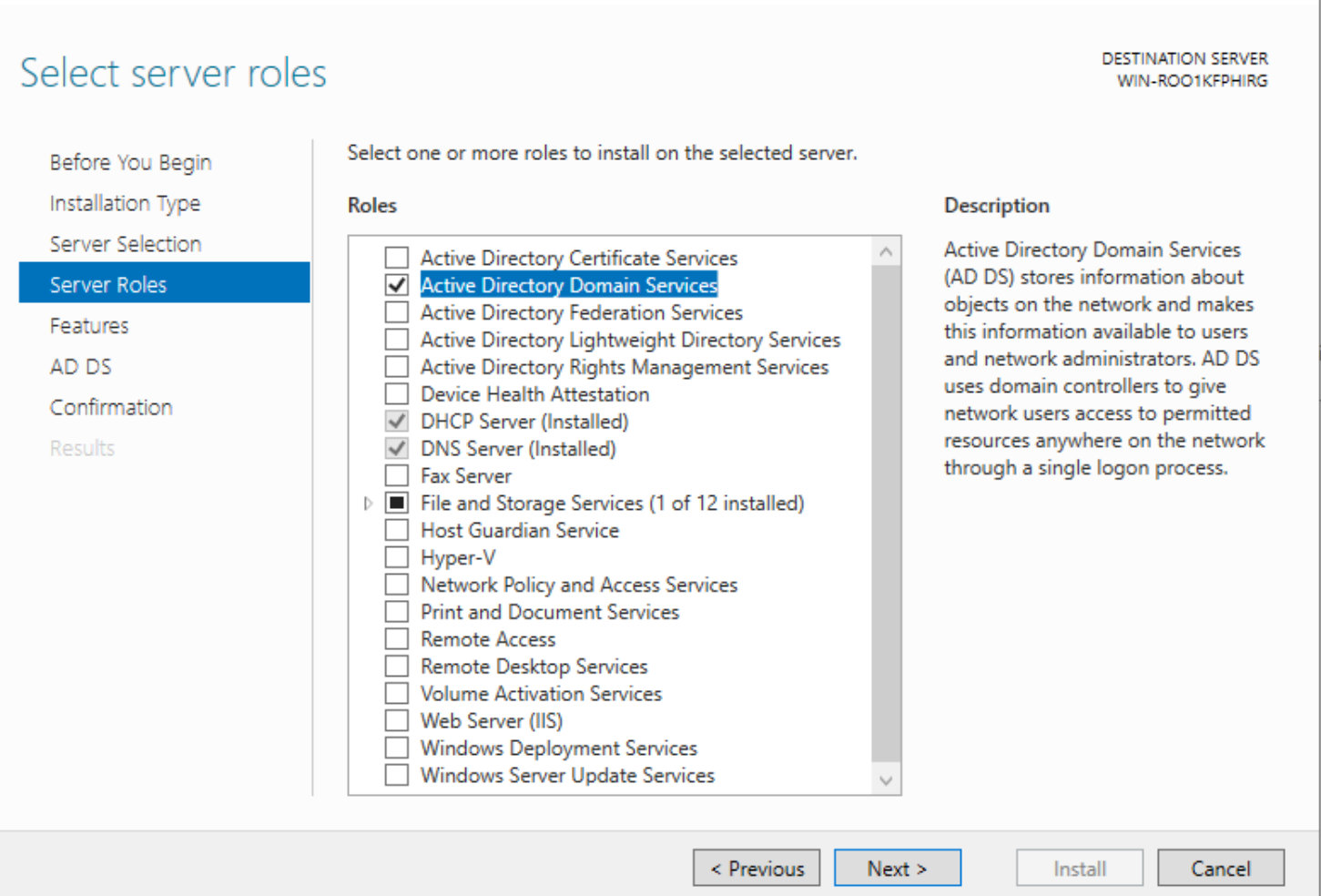

On the Server Roles page:

  • Check DNS Server
  • Check Active Directory Domain Services
  • Check DHCP Server (optional)

Click Next.

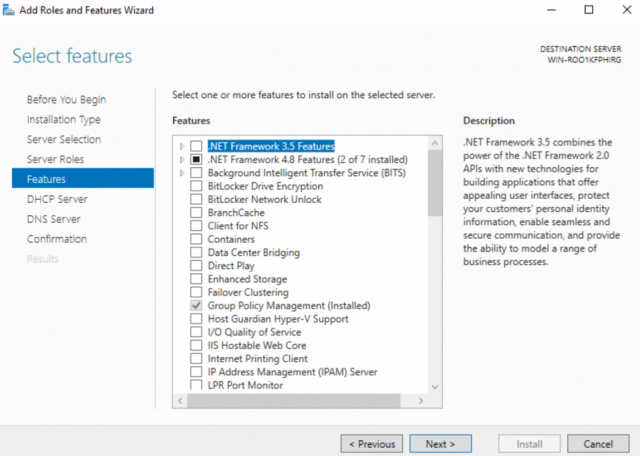

On the Features page, you can just click Next
